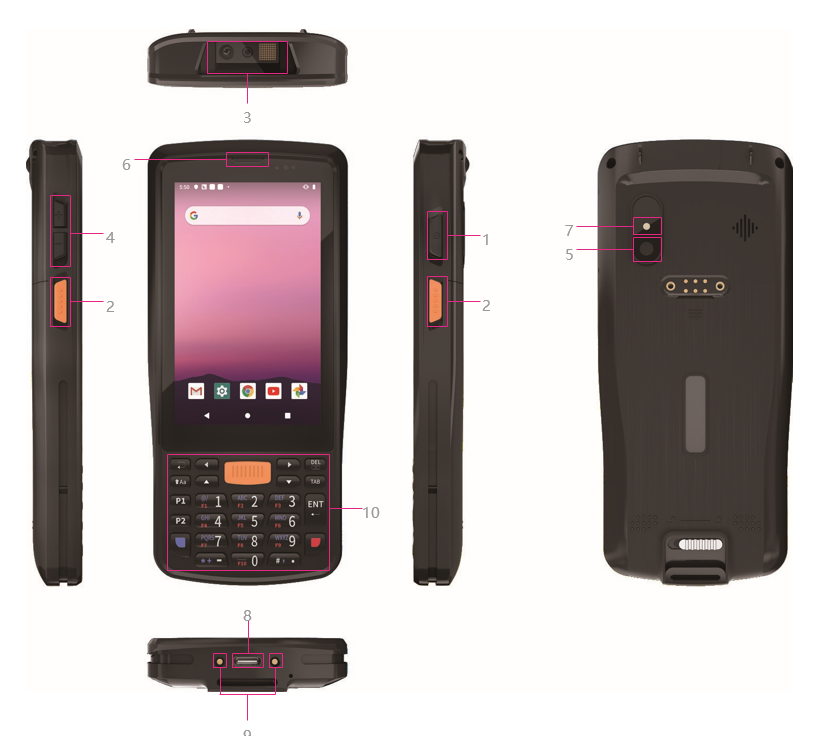

Operating and display elements
1 |
Power Button |
Switches the display on or off in the switched-on state. In the off state, long press to start the device. In the on state, long press to open the shutdown menu of the device. |
2 |
Scan Buttons |
Triggers the scan function |
3 |
Barcode scanner |
Integrated barcode scanner with LED illumination |
4 |
Volume buttons |
Increases or decreases the volume |
5 |
Camera |
For taking photos and videos. Controlled via the included camera app |
6 |
Loudspeaker |
Emits sounds |
7 |
White LED |
Functions as a flash/illumination when taking photos |
8 |
Type C USB |
Connector for transferring data and charging the device |
9 |
Docking port |
Charges the device via suitable optional accessories |
